Cold-Rolling Mill Machine Sale
Main Applications:
❖ Steel Coil ❖ Aluminum Coil ❖ Copper Coil ❖ Your Application
We also provide high precision cold rolling mill and hot rolling mill
You Need Better Cold-Rolling Mill at Good Price
Due to government environmental protection and Deproductivity Action, a lot of good machines are stopped, we can find you second hand rolling mills with good condition and good price;

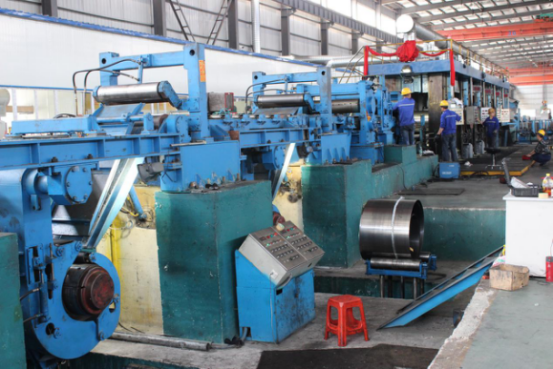

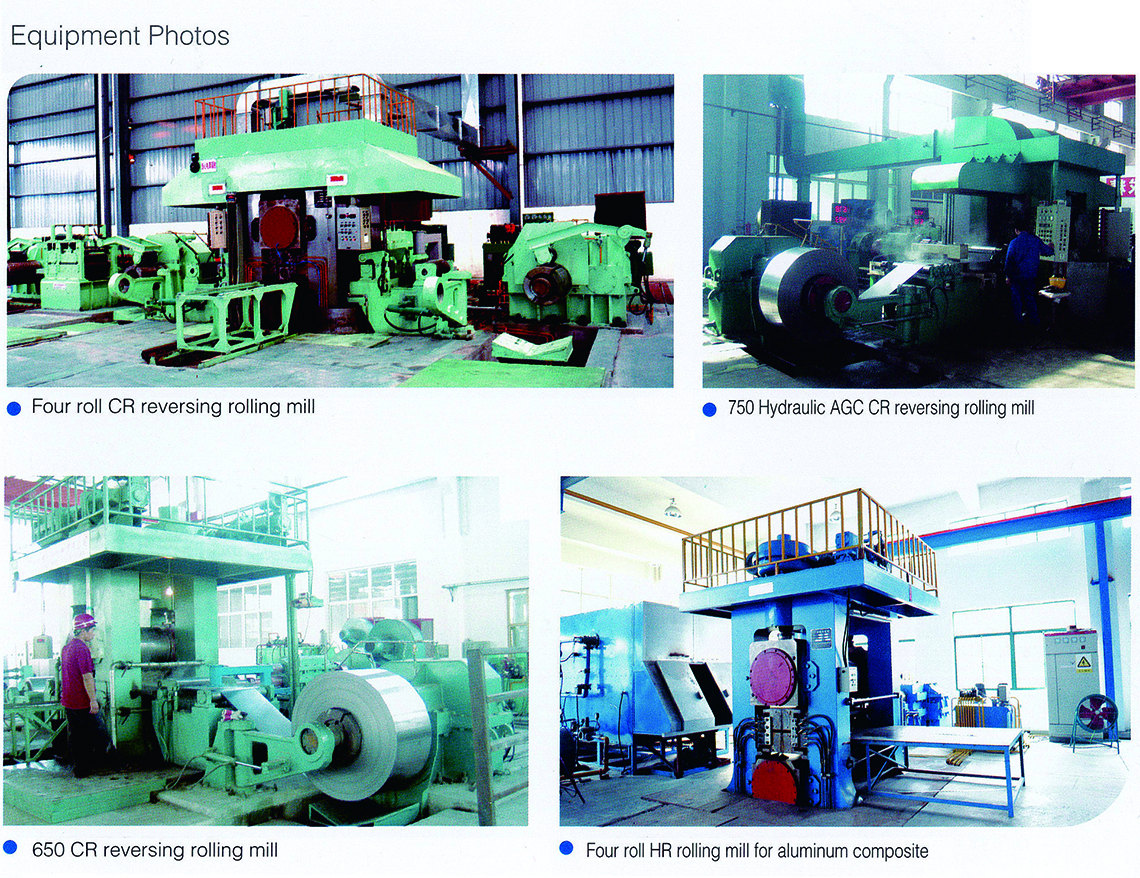

Wuxi Enhancing Technology Co., Ltd.’s four roll & six roll reversing rolling mill include uncoiler, hydraulic loading and unloading trolley, 5 roller pinch leveler, entrance and exit platform, rolling mill, left and right recoilers, joint gear box, hydraulic AGC and bending roll system, driving motor, electric control system, equipment lubrication system and process lubrication system, etc.

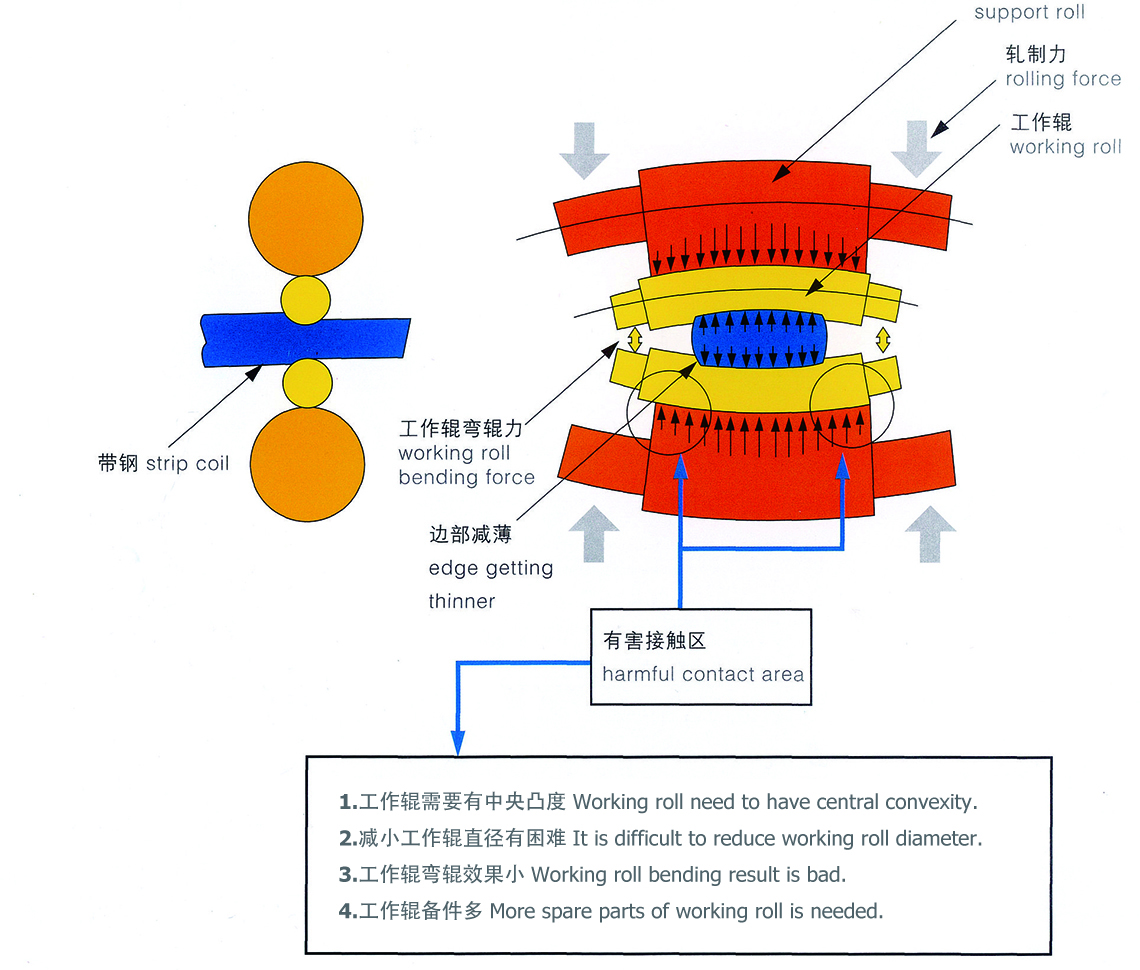

Principle of Four Rolls Rolling Mill
The roll system of four rolls rolling mill consists of two supporting rolls and two working rolls. The pressing force from cylinder or mechanical system will be transmitted through bearing stand, supporting roll, working roll and finally act on the product during operation. The height of strip will reduced and its length will be extended to meet with customer’s needs.
The disadvantage of four rolls rolling mill is that the deflection will cause a thinner edge on strip product. And the rolls need to be grinded after a period of operation.

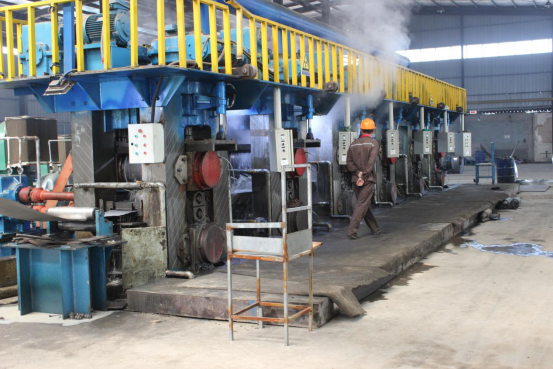

Wuxi Enhancing Technology Co., Ltd.’s six roll reversing rolling mill include uncoiler, hydraulic loading and unloading trolley, 5 roller pinch leveler, entrance and exit platform, rolling mill, left and right recoilers, joint gear box, hydraulic AGC and bending roll system, driving motor, electric control system, equipment lubrication system and process lubrication system, etc.

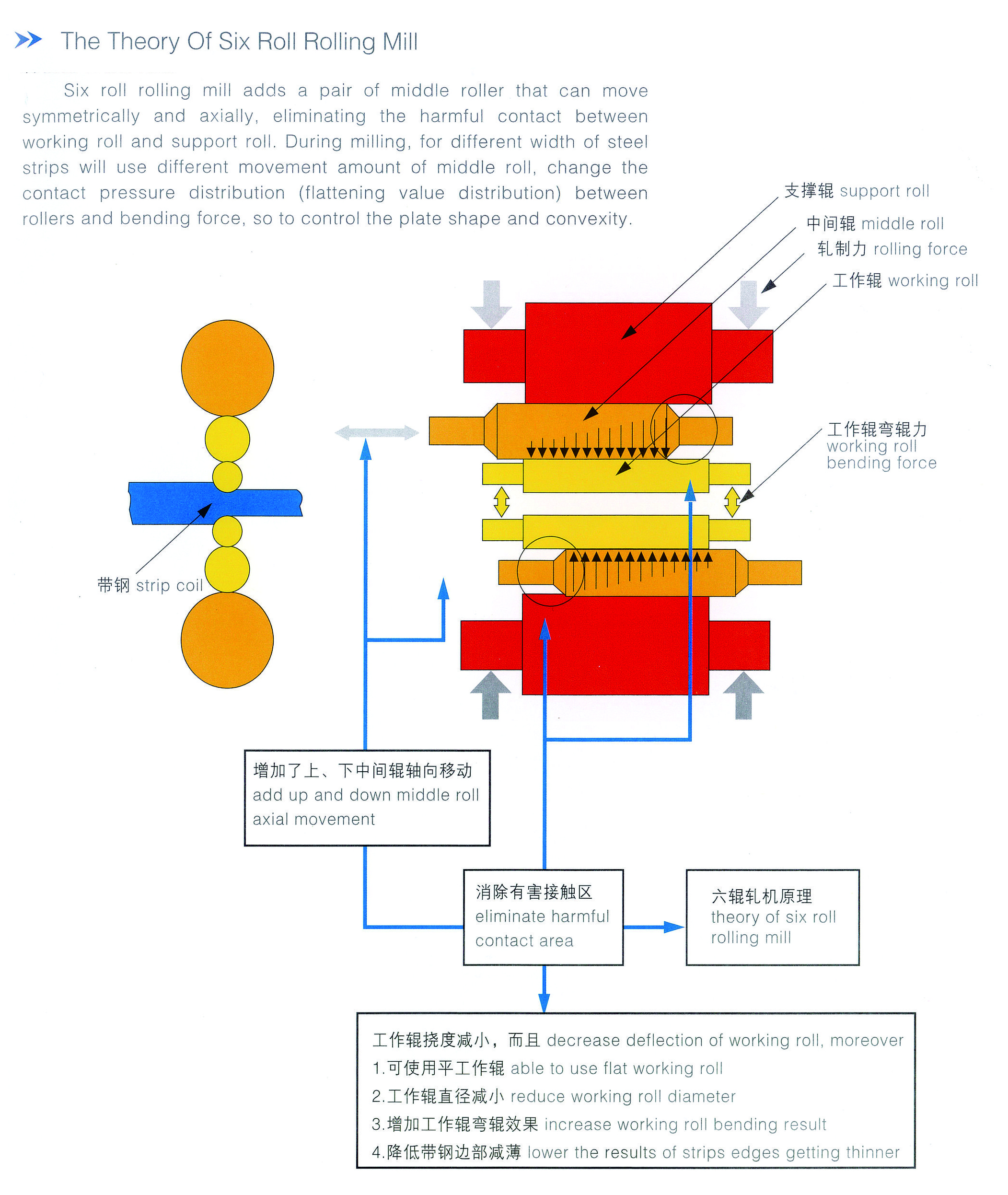

Principle of Six Rolls Rolling Mill
There are 2 more additional rolls which will be oscillated between working rolls and supporting rolls to eliminate the deflation problem during operation. Oscillation distance will be changed according to different width of strip. A better contact pressure distribution (flattening value distribution) control between rolls will greatly benefit the shape and flatness of product.

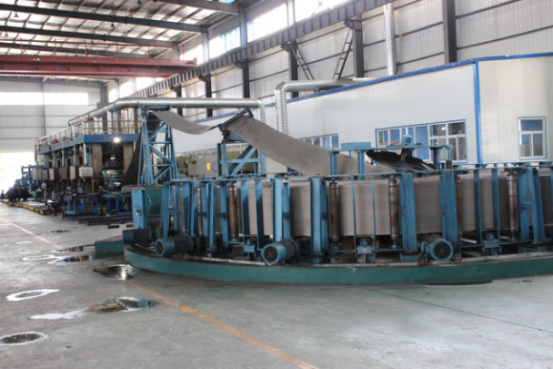

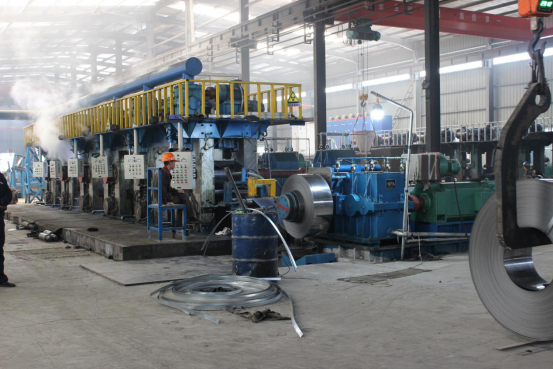

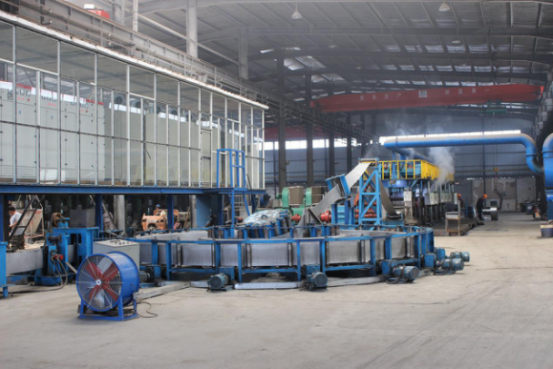

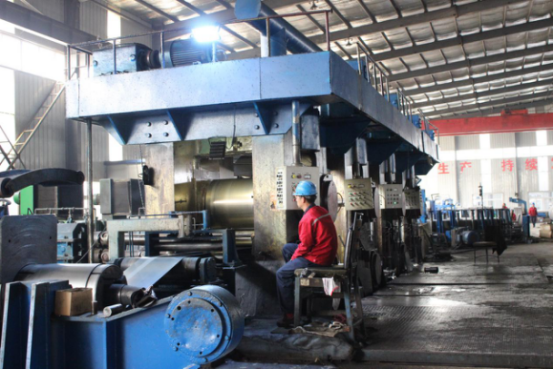

Wuxi Enhancing Technology Co., Ltd.’s four roll & six roll reversing rolling mill include uncoiler, hydraulic loading and unloading trolley, 5 roller pinch leveler, entrance and exit platform, rolling mills (number of rolling mills will be made in accordance with customers’ needs), recoiler, joint gear box, hydraulic AGC and bending roll system, driving motor, electric control system, equipment lubrication system and process lubrication system, etc.
