Advantages of our high precision wire rolling machine
- High Precision (Tolerance:±2.5μm)
- High Efficiency (Max. Speed: 600m/min)
- High Variable (Accuracy guaranteed for 6 years)
- High Intelligence (Auto adaptation, Auto diagnosis, Auto checking)

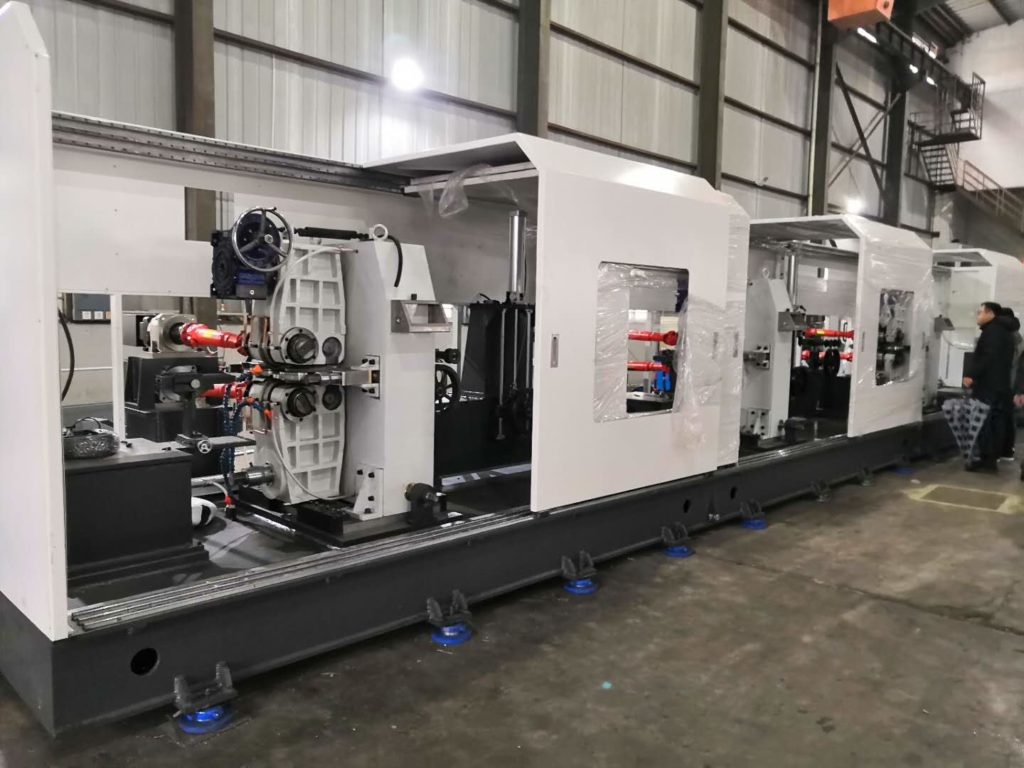

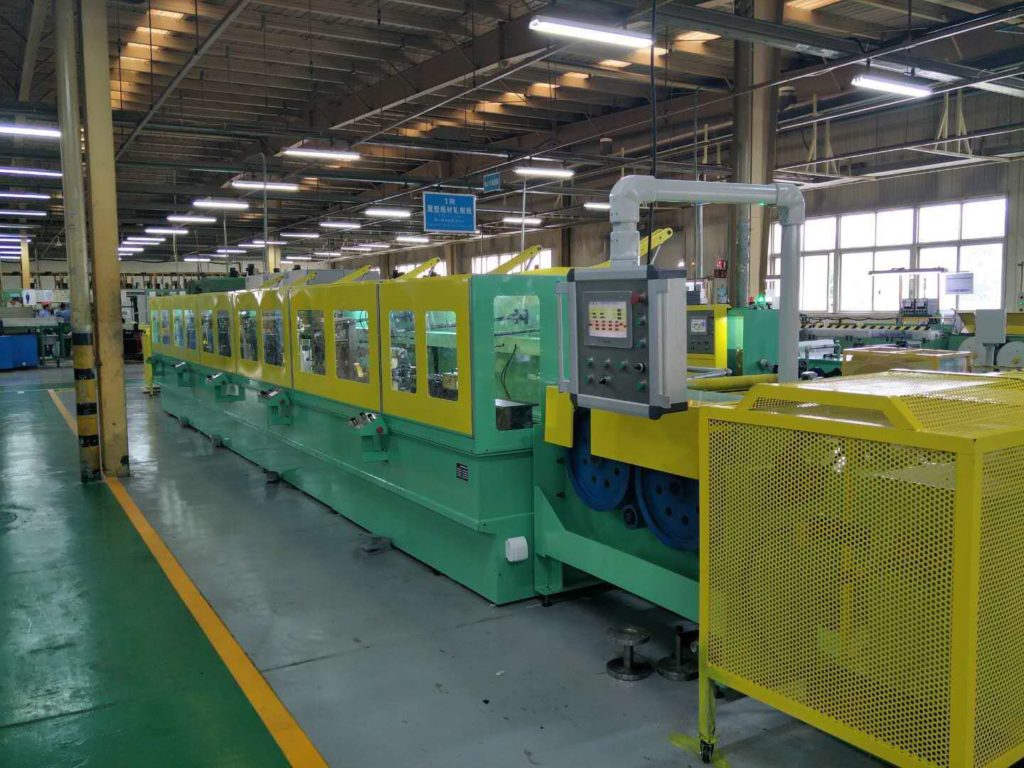

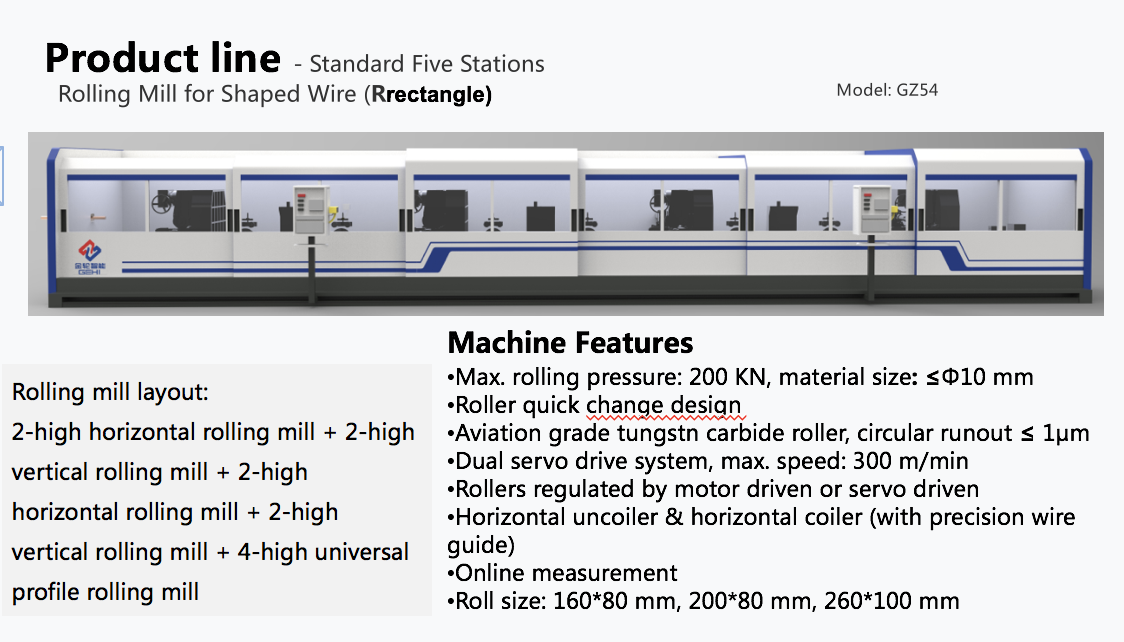

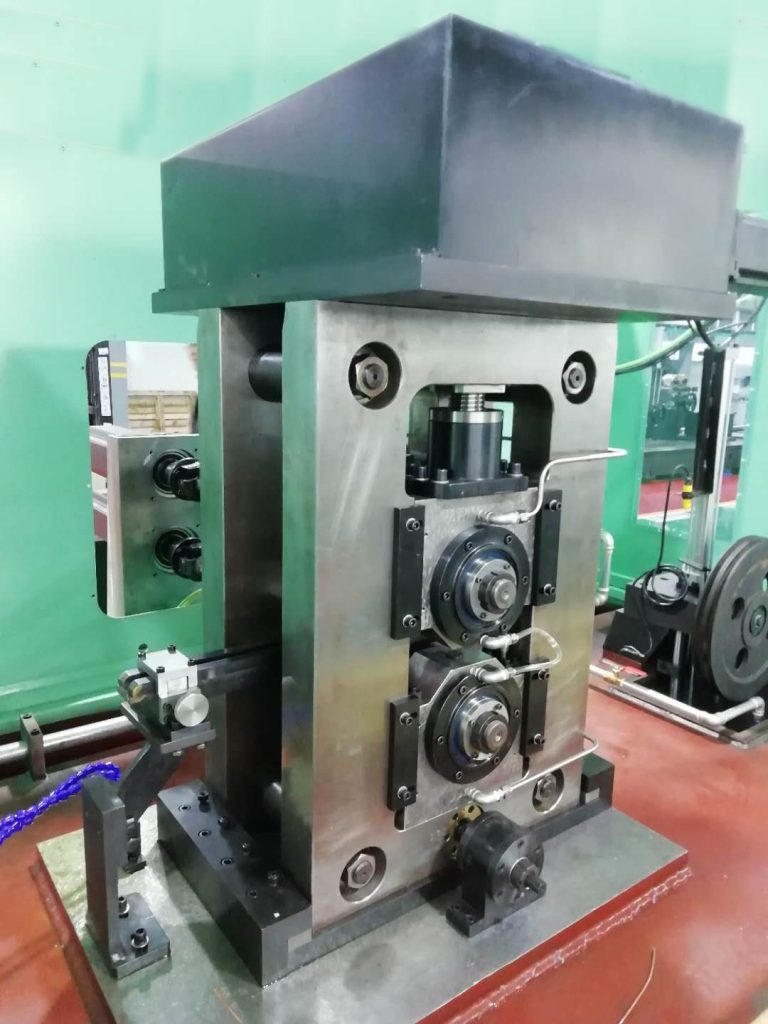

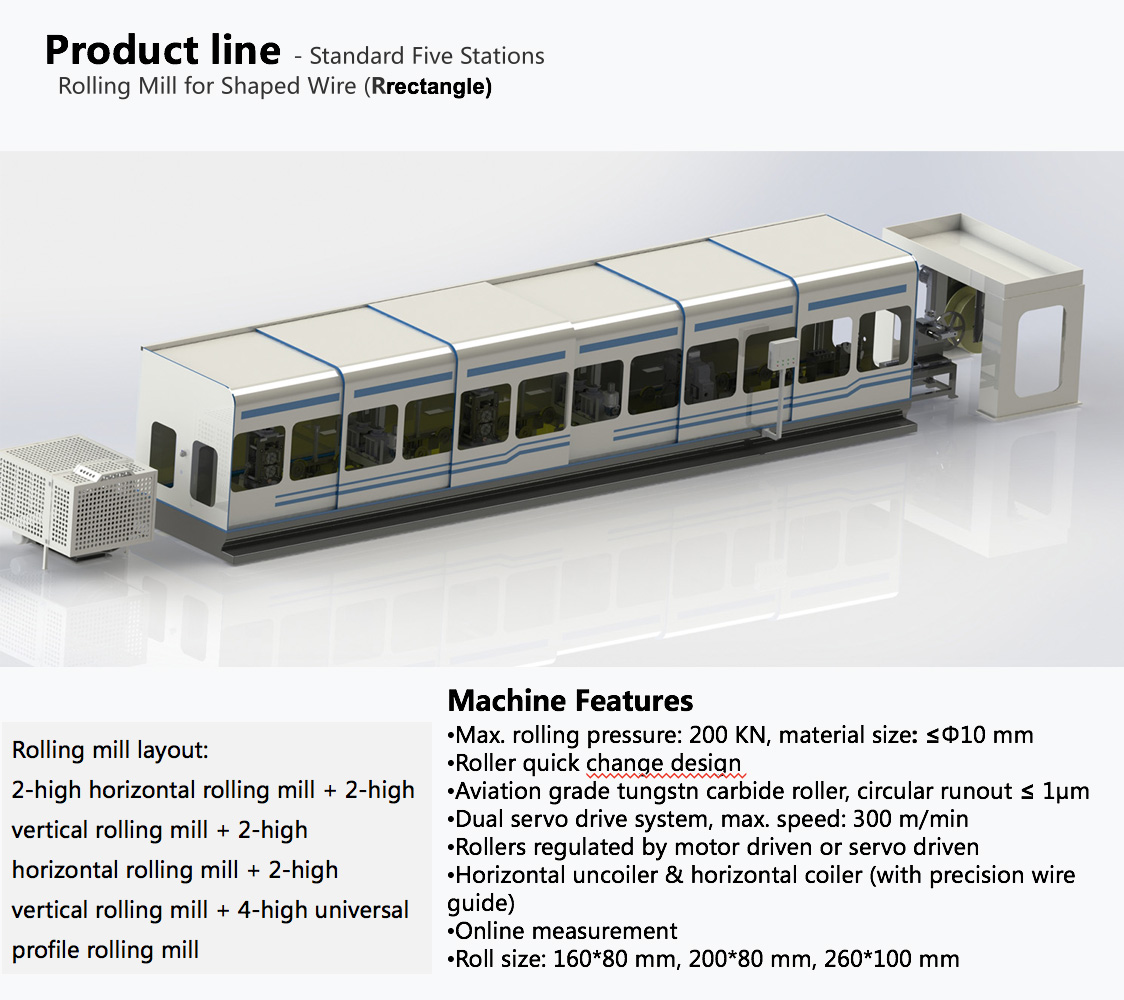

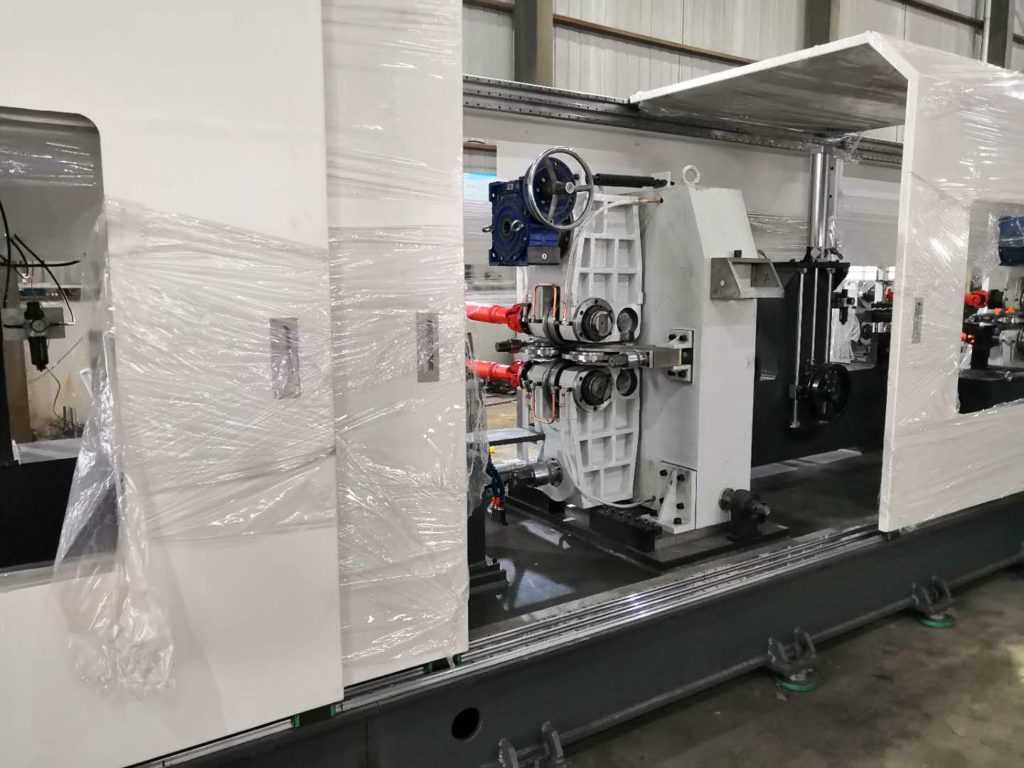

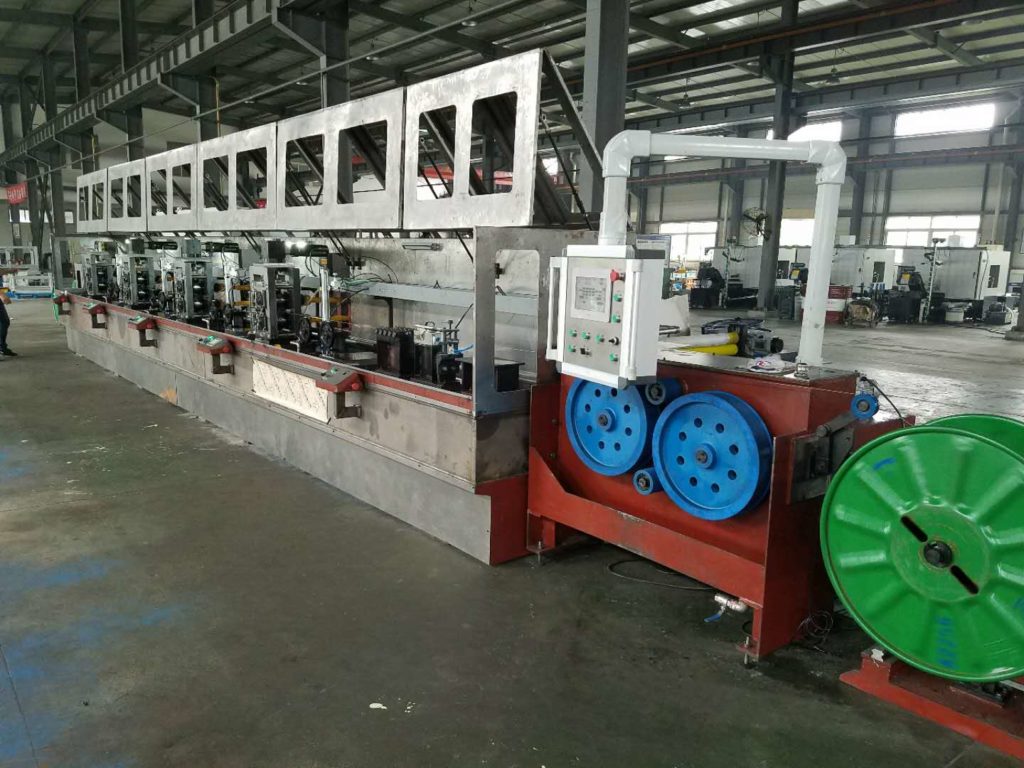

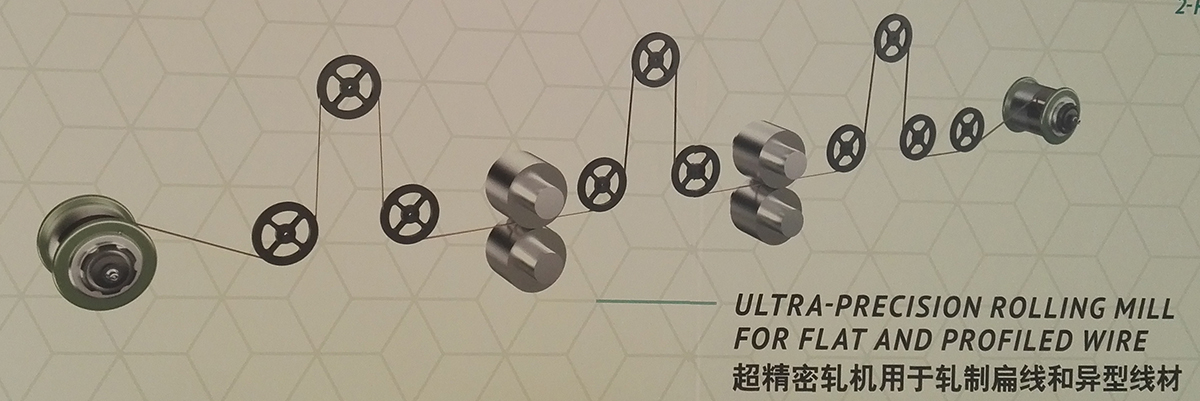

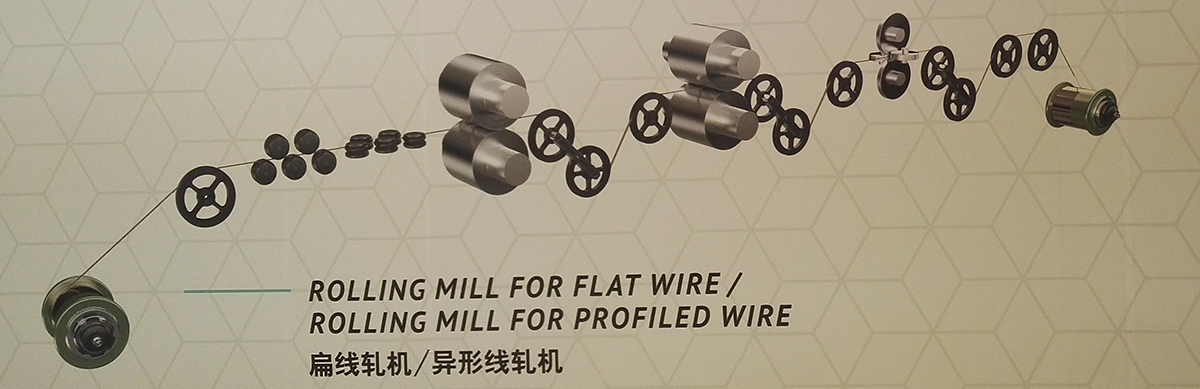

A precision wire rolling mill is usually composed of stringer, straightener, horizontal two-high, vertical two-high, universal four-high, tension device, degreasing and cleaning device, traction device, take-up machine, lubrication system, cooling system, control system and on-line measurement system. It is suitable for rolling rectangular wire or flat wire with high precision. Its advantages are as follows:
- Maximum force 200KN, maximum line 10mm
- Rapid roll change, one-button roll-to-roll
- Minimum roll runout < 0.001 mm for aviation grade cemented carbide rolls
- Double servo drive rolling with maximum linear speed of 300m/min
- Electric/Servo Hydraulic Roll Gap Adjustment
- Active wiring and gantry precision wiring
- Online measurement
- Roll diameter 160*80mm 200*80mm 260*100mm
Wirerolling mill data sheet
| Name | Parameter | |
| Raw material diameter | Φ0.1~Φ20mm | |
| Raw material | Cooper, Stainless steel, Carbon steel, Steel alloy etc. | |
| Rolled wire size | Max. width-thickness ratio: 30 | |
| Final precision | ≤0.005mm | |
| Working speed | 10~600m/min | |
| Composition | Payoffs | Per raw material wire. |
| Tension | Pneumatic adjustable, servo torque control. | |
| Roller | Per rolling method. | |
| Inline detection | Real-time Width and Thickness Detection. | |
| Cooling system | Cooling medium constant temperature control, precision filtration. | |
| Lubrication system | Centralized lubrication and constant temperature control. | |
| Straightener | Vertical straightening and Horizontal Straightening. | |
| Oil removal system | Air knife oil removal/scraping oil removal. | |
| Precision take-up | Precision take-up, layout accuracy 0.2m, I-wheel can be customized. | |
